Standard 5G Wireless Router

供應情形: 有現貨

型號: G2Wifi_5G

Model : G2Wifi 5G


Wireless Router with WAN and built-in 5G Modem

Model : G2Wifi 5G

G2WiFi 5G is a 5G CPE Wireless Router with Voice (Option) equipped with MT7622A dual core wireless solution and 5 Ports Gigabit Ethernet switch (four LAN & one WAN port), performs excellent wireless performance and strong scalability with date transmission of DL 2.4 Gbps/UL 900 Mbps for 5G SA Sub-6, DL 3.2 Gbps / UL 600 Mbps for 5G NSA Sub-6, DL 1.0 Gbps / UL 200 Mbps for LTE and DL 42 Mbps / UL 5.76 for WCDMA.

Product Photos

Dimension (L x W x H): 204 x 129 x 30  x mm (excludes antennas)

Standard 5G Wireless Router

Front View

Standard 5G Wireless Router

Rear View

Standard 5G Wireless Router

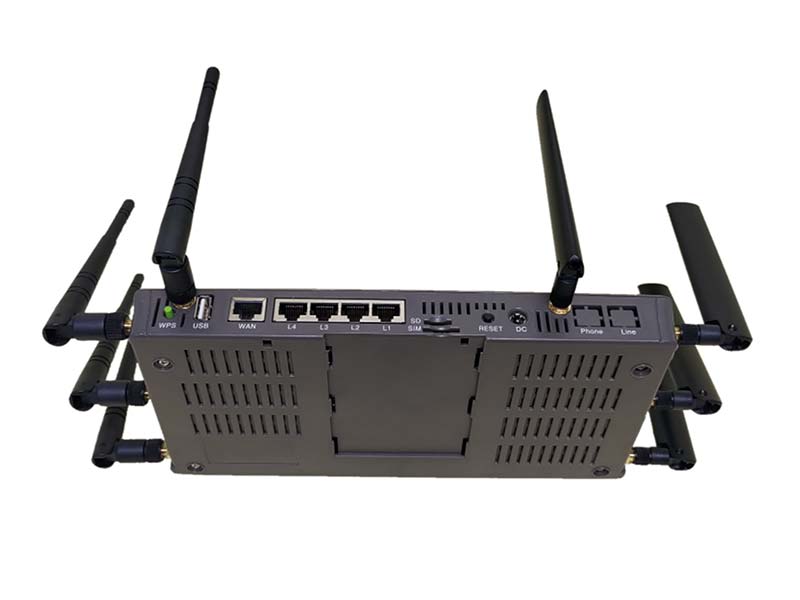

Back View

Standard 5G Wireless Router

 Top View

General specifications
  • MT7622A chip, Embedded Dual-core ARM® Cortex-A53,1.35GHz
  • DDR3 memory up to 8Gb (512MB x 16)
  • 4x4 wifi IEEE 802.11 b/g/n compliant
  • SMA connector for external wifi antenna
  • Support 20 & 40MHz bandwidth in 2.4GHz band
  • Bluetooth core specification V4.2 compliant
  • Supports BLE 2Mbps
  • Support Quectel RM520N-GL 5G Sub-6 GHz M.2 Module
Connection interfaces
  • 5 Ports Gigabit Ethernet switch, four LAN & one WAN port
  • USB 2.0 type A connector, Host mode
  • SIM Card for 4G/5G
  • Micro SD SDxC class 10 (max 128GByte)
  • miniPCIe (PCIe 2.0) for wifi5/wifi6 module
  • miniPCIe (USB I/F) for 3G/4G LTE modem
  • SATA connector, share with PCIe interface
  • JTAG support
Application Example
Standard 5G Wireless Router

Cellular Specifications

Frequency Bands
5G NR Bands:



  • n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
  • LTE-FDD Bands: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
  • LTE-TDD Bands: B34/B38/B39/B40/B41/B42/B43/B48
  • LAA B46
  • WCDMA B1/B2/B4/B5/B8/B19


  • Carrier : T-Mobile* / AT&T*/Verizon*/Deutsche Telekom*
  • Others : RoHS

Router Specifications

  • IP and MAC Filter
  • Virtual Server and DMZ
  • NAT (Network Address Translation)
  • PPTP, L2TP pass-through
  • PPTP, L2TP/IPSec client
  • Open VPN
Communication Protocols
  •  PPPoE, IP, NAT, DHCP, PAP, CHAP, PPP, TCP/IP, UDP, HHTP, NTP (other protocols upon request)
O&M Protocols
  • HTTP, SSH, TFTP, FTP, SNMP v2c, Broadband Forum TR-069 (Option)
Mechanical Specifications
  • Plastic Housing with External Connectors
  • Dimension (L x W x H): 204 x 129  x 30 mm (excludes antennas)
  • Operating Temperature: -10°C to +55°C
Power Specifications
  • DC input: 12VDC input range, 14-30V for option
* Specifications are subject to change without notice.
